If a gas line goes to more than one valve then we need to build a manifold for it. Drawing of a typical gas manifold:
Although pipe taps are measured in inches, you generally cannot match them up to a tape measure. Pipe sizes were originally based on the inside diameter of the pipe. As technology has been enhanced, the inside diameter has changed but the outside diameter has remained constant for the purpose of standard fittings. Therefore, a 1/8 inch pipe tap is actually nowhere near 1/8 inch in size. Also, pipe taps are "tapered". This means they get bigger as the tap threads goes deeper. If you go all the way through then the threads will be too big and you will not be able to seal your valves. For the 1/8 inch tap pre-drill with a size "R" (0.339") drill bit.
Simple Burner Configuration
Shown to the right is a simple griddle burner configuration. It consists of an incoming pipe which doubles as a manifold, two burners and two pilot lights. In this configuration you must light the burner manually when the gas is turned on and there is no safety shutoff if the wind extinguishes the pilot flames. The heat level is controlled by the burner valves. The pilots remain lit as long as gas is present so the burners can be turned off when not in use.
Manifolds
Shown to the right is a simple griddle burner configuration. It consists of an incoming pipe which doubles as a manifold, two burners and two pilot lights. In this configuration you must light the burner manually when the gas is turned on and there is no safety shutoff if the wind extinguishes the pilot flames. The heat level is controlled by the burner valves. The pilots remain lit as long as gas is present so the burners can be turned off when not in use.
Simple Burner Configuration
Gas stove
Gas stove

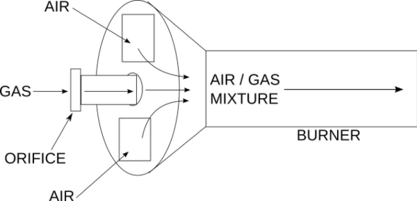

For a burner to work properly it must have a balanced mixture of gas and air. The gas is controlled by the size of the hole in the orifice. That usually feeds directly into the end of a burner which has adjustable vents to let in air. The action of the gas flowing into the burner in a specific direction causes a vacuum which pulls air in from the air vents. The gas and air then mix and proceed on to the burner jets where they are ignited.
If there is not enough gas then the flame will be too low. If there is not enough air then the flame will burn "rich", use much more gas than is needed and leave a sooty film on everything. It is critical to adjust the amount of gas (through the size of the orifice opening), and the amount of air (by adjusting the vent openings) to get the right mix.
